Ibipimo byibicuruzwa

Ingingo		Ibisobanuro	Igice
Urutonde rwinshuro	fc	100 ~ 3600MHz		MHz
Inshuro zisanzwe		1575.42, 1582.4,1568,2655		MHz
Ubugari Bwingirakamaro		3,25,48 cyangwa ugaragaze		MHz
Gutakaza Kwinjiza (min)	IL	0.9,1.3,1.8, 2.2 cyangwa kwerekana		dB
VSWR (max)		2.0		dB
Gukoresha Ubushyuhe		−40~+85		impamyabumenyi
Ububiko Ubushyuhe Urwego		−40~+85		impamyabumenyi

Ibiranga ibicuruzwa

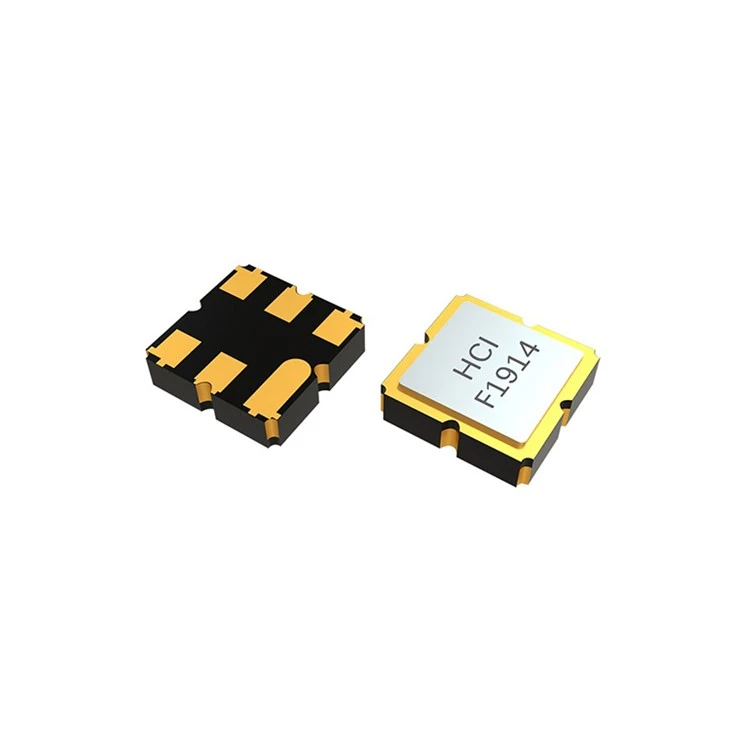

Size Ingano nto 3.0x3.0x1.3mm

■ Gusudira birashobora gukorwa no gushiraho byikora

■ Hasi - igihombo SAW

Porogaramu

RF SAW Bandpass Filter 3 x 3 x 1.25 SF33M6 ikurikirana ikoreshwa muri Automotive Electronics, Hasi - Ibikoresho byitumanaho rya Wireless Itumanaho, Ibikorwa Remezo byitumanaho hamwe nu bikoresho bya elegitoroniki & IoT.

Imashini zikoresha ibikoresho bya elegitoroniki

GPS

Ibyiza byibicuruzwa

Amplitude yo hasi

Kwangwa gukabije kuri bande - bande

icyemezo

RF SAW Bandpass Filter 3 x 3 x 1,25 mm - SF33M6 ikurikirana ni RoHS yujuje.

Ibibazo

Q1: Nigute dushobora kugenzura imikorere ya RF SAW Bandpass Filter?

A: 1) Gupima igihombo cyo gushiramo (urugero, -1.5dB kugeza -3dB wanditse. Kuri frequency frequency) ukoresheje Vector Network Analyser (VNA).
2) Characterize Bandwidth & Selectivity by plotting S21 to determine -1dB and -3dB bandwidths and out-of-band rejection (e.g., >25dB kuri ± 100MHz offset).
3) Check Return Loss (S11/S22) to ensure impedance matching (e.g., >15dB) muri passband yo gutekereza cyane.

Q2: Ibibazo Rusange & Ibisubizo kuri RF SAW Akayunguruzo?

Igisubizo: Ikibazo 1: Gutungurwa Byinshi Bitunguranye Gutakaza cyangwa Passband Ripple
Impamvu: Impedance idahuye hagati ya filteri hamwe na PCB ikikije / ibice byangiritse (mubisanzwe 50Ω).
Gukosora: Kugenzura no guhindura ibyinjijwe / ibisohoka bihuza urusobe (urugero, urukurikirane cyangwa shunt inductors / capacitor) nkuko byasabwe muri datasheet.
Ikibazo 2: Abakene - ya - Kwanga bande cyangwa ibimenyetso bimeneka
Impamvu: EMI guhuza biva hafi yabangamira isoko cyangwa kubutaka budahagije kumashanyarazi.
Gukosora: Menya neza ko akayunguruzo k'ubutaka kagurishijwe neza ku ndege ikomeye ya RF. Koresha amabati yo gukingira no gutandukanya akayunguruzo kava mu rusaku rwinshi (urugero, imbaraga zongera imbaraga, amasaha).
