Ibipimo byibicuruzwa
|
PARAMETER |
X49TT2 |
IBISABWA / ICYIBUTSO |
|
|
Inomero yumurongo |
2.048 ~ 80.0MHz |
Shingiro kugeza kuri 35MHz na 3 irenga hejuru ya 100MHz. |
|
|
Gukata Crystal hamwe nuburyo |
KURI - gukata / AMAFARANGA & 3 OT |
- |
|
|
Kwihanganira inshuro |
± 10ppm / ± 20ppm / ± 30ppm |
ubundi buryo burahari. |
|
|
Guhagarara inshuro |
± 10ppm |
± 30ppm |
ubundi buryo burahari. |
|
Ikigereranyo cy'ubushyuhe |
-20 kugeza +70 impamyabumenyi |
-40 kugeza +85 impamyabumenyi |
ubundi buryo burahari. |
|
Kurwanya urukurikirane |
500Ω ~ 200Ω 150Ω ~ 100Ω 100Ω ~ 40Ω <40Ω <60Ω |
AMAFARANGA - 2.0 kugeza kuri 2.9MHz AMAFARANGA - 3.0 kugeza 4.5MHz AMAFARANGA - 4.6 kugeza 9.9MHz FUND – >10.0MHz Icya 3 OT - 35.0 kugeza 80.0MHz |
|
|
Kuremerera ubushobozi |
8 ~ 32pF cyangwa SERIES |
Nyamuneka sobanura. |
|
|
Shunt capacitance |
<7pF |
-- |
|
|
Urwego rwo gutwara |
100μW TYP / 500μW MAX |
-- |
|
|
Gusaza umwaka wambere |
± 5ppm |
@ +25 impamyabumenyi |
|
Ibiranga ibicuruzwa
Ibipimo:
11x13x11.4 hamwe na 2 bayobora
■ Ibyiza kuri frequency nke
Acer Gutandukanya guhitamo no kugabanya kuyobora birahari
Porogaramu
- HC-49T MHz Crystal-X49TT2 ikoreshwa mubikoresho bya elegitoroniki (Isaha ya Digital, shiraho - agasanduku ko hejuru), hamwe na Optical Networks.
Ibyiza byibicuruzwa
Inkunga ya Frequency:
Optimised for low- imikorere yumurongo kuri 2.048MHz.
Ibishushanyo byabigenewe birahari:
(Inshuro, imikorere)
icyemezo

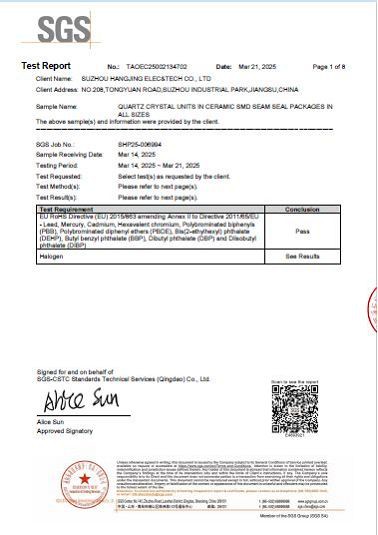

UwitekaHC-49T MHz Crystal - X49TT2 ibicuruzwa byubahiriza RoHS na REACH, Kurongora - Ubuntu na Halogen - Ibisabwa kubuntu.
Ibibazo
Q1: Kubicuruzwa bya Suzhou Hangjing HC - 49T MHz Crystal-X49TT2, ni ibihe byiciro bihamye (± ppm) biboneka kubushyuhe butandukanye?
Igisubizo: ± 10ppm, ± 20ppm, ± 50ppm ihitamo murwego rwinganda zinganda (-40 dogere +85 dogere).
Q2: Urashobora gusaba ubundi buryo bwa SMD (urugero, 3225/5032 paki) kumwanya - ibishushanyo mbonera?
Igisubizo: Nibyo, ndasaba Suzhou Hangjing ya XC32M4 cyangwa XC53M4.
Q2: Ni ubuhe buryo bukurikirana kuri HC - 49T MHz Crystal-X49TT2?
Igisubizo: Dushyigikiye intera nini ya 2.048 ~ 80.0MHz.
