Ibipimo byibicuruzwa
|
PARAMETER |
CYANE UMUJYI 3.3V |
WIBUKE |
|
Ikirangantego |
10 ~ 52MHz |
/ |
|
Kwihanganira inshuro |
± 1.0ppm |
Tol. @ +25 impamyabumenyi |
|
Guhagarara inshuro |
± 0.28ppm |
/ |
|
Ikigereranyo cy'ubushyuhe |
–20 kugeza +70 impamyabumenyi / –30 kugeza +85 impamyabumenyi / –40 kugeza +85 impamyabumenyi |
Hamwe na hamwe hejuru. |
|
Gusaza ku mwaka |
± 1.0ppm |
@ +25 impamyabumenyi |
|
Gukubita inshuro. (Muri rusange, imyaka 20 gusaza) |
± 4.6ppm |
/ |
|
Ibisohoka bisohoka kandi biremereye |
Gukata Sine Wave 10kΩ / 10pF |
/ |
|
Urwego rwa voltage urwego |
0.8Vpp |
Ntarengwa |
|
Ikigereranyo (cycle duty) |
45~55% |
@ 50% VCC |
|
Urusaku rw'icyiciro (urugero 10MHz) |
-120dBc / Hz / -140dBc / Hz / -148dBc / Hz |
@ 100Hz / 1kHz / 10kHz |
|
Icyiciro cya jitter RMS |
<1ps |
12kHz Ntibisanzwe cyangwa bingana na Fj Ntibisanzwe cyangwa bingana na 20MHz |
|
Tanga ikigezweho |
3.5mA |
@ 10kΩ / 10pF |
|
Icyitonderwa: Guhagarara kwinshuro ninshuro zitandukana hejuru yubushyuhe ukurikije +25 dogere |
||
Ibiranga ibicuruzwa

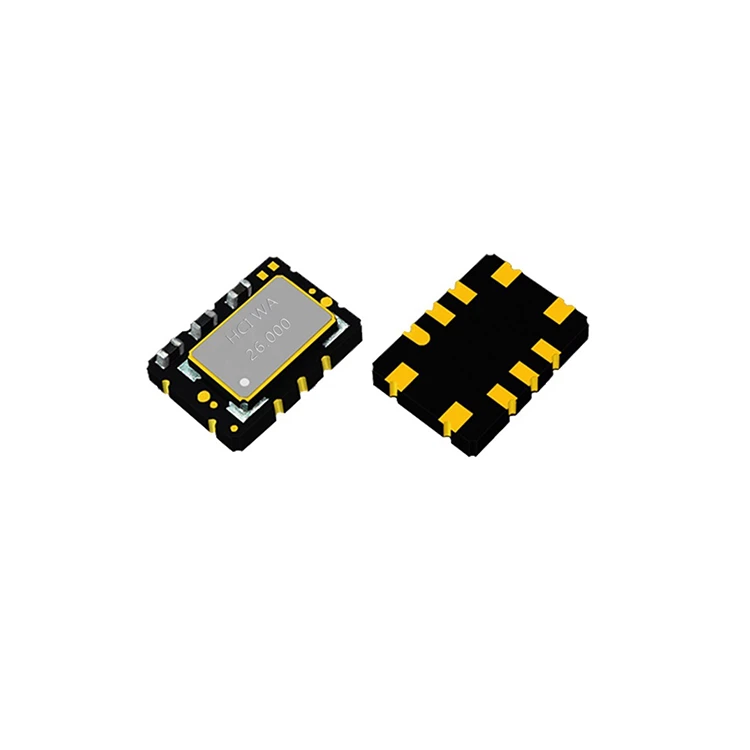

Ibipimo bito 7.0x5.0x1.9 hamwe nudupapuro 10 two kugurisha
Stratum 3 (Muri rusange ± 4.6ppm harimo imyaka 20 gusaza)
H RoHS yujuje, KORA - KUBUNTU, HALOGEN - KUBUNTU KANDI KUGERAHO
Porogaramu
- Clip Sine Wave TCXOs 7050 10 Urupapuro rwa TT75SA rukoreshwa cyane muri: WiFi / WLAN / Ethernet / Porogaramu ya Mobil / Itumanaho / Sitasiyo ya Base nibindi bicuruzwa.
Ibyiza byibicuruzwa
Gukoresha ingufu nke
Uburyo bwogosha bwa sine wongeyeho uburyo buke bwa electromagnetic interineti, bigatuma biba byiza kumuzunguruko, mugihe nanone bikwiranye nimbaraga nkeya - kubera ingufu nke zikoreshwa.
Ikigereranyo Cyinshi Cyubushyuhe
Mubisanzwe ikora byizewe hejuru yubushyuhe bugari bwa dogere -40 kugeza kuri dogere 85, bigatuma ibera mubisabwa aho ubushyuhe bwo guhangana nubushyuhe buri hejuru, nko mubikorwa byinganda.
icyemezo
Teklipede Yapfuye Weftkos 7050 10 Amapine TT75SA ni RoHS / REACH - yemejwe, ayoboye - kubuntu, na halogen - kubuntu.
Ibibazo
Ikibazo: Nabwirwa n'iki ko umuzunguruko wa oscillation ya HCI Clip Sine Wave TCXOs 7050 10 Pins Crystal ihuye?
Igisubizo: Reba niba ibyasohotse bisohoka bya kristu oscillator isanzwe, kandi ukoreshe oscilloscope kugirango bipime impinga, impinga, inshuro nibindi bipimo byerekana ibisohoka kugirango umenye neza ko bihuye nibisobanuro bya oscillator ya kristu.
Ikibazo: Nakora iki niba urwego rwo kwishima rwa HCI Clipped Sine Wave TCXOs 7050 10 Amapine adasanzwe?
Igisubizo: Urwego rwo kwishima rwumuzunguruko uzunguruka kuri kristu isohoka ihindurwa muguhindura ubunini bwa Rd mukuzunguruka.
